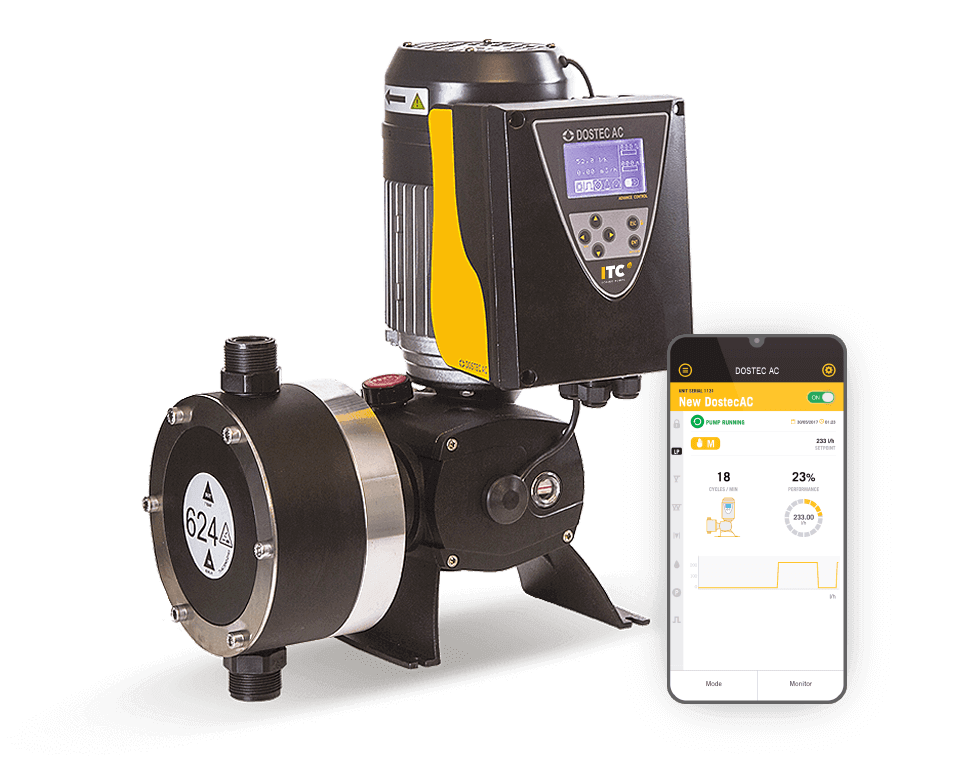

Dostec AC

Pompes doseuses à membrane et à piston, avec contrôle de dosage avancé

ITC / Dostec AC

App disponible
Cloud Manager App →

Highlights

Débit: 3-1200 l/h
Pression maximale: 20 bar
Contrôle analogique (0 / 4-20 mA)
Contrôle proportionnelle par impulsion
Batch commande de dosage
ModBus supervision et contrôle
Contrôle manuel de débit

Télécharger brochure

Contactez-nous pour plus d’informations

Débit
3-1200 l/h
Pression maximale
20 bar

Information produit

Description générale

Dostec AC is a diaphragm or piston dosing pump with advanced control for an accurate and efficient automatic dosing.

This series allows many dosing possibilities depending on the chosen head. The flow range covers from 3 to 1200 l/h (317 gph) up to pressures of 20 bar (290 psi). The correct selection of head’s materials, PP, PVDF or S.S., makes this pump suitable for the most chemicals products used in water treatment, chemical industry, food and beverage and agriculture.

Operation modes

Manual: manual flow adjustment through the keyboard
Analogue: dosing flow proportional to a 0/4-20mA signal
Proportional to flow: proportional dosing to a water flow
Proportional to pulses: stroke frequency proportional to input pulses
Batch control, by volume: dosing a defined volume, after a manual, remote or time pre-set start
Batch control, by time: dosing for a defined time, after a manual, remote or time pre-set start
ModBus: dosing control through ModBus RTU protocol

Caractéristiques techniques

	Code		Débit		Pression
	230 V	110 V	l/h	GPH	bar	PSI
Piston	73-AC3P44-P110__X	-	1200	317	5.5	80
	73-AC3P44-P95__X	-	900	238	7.5	109
	73-AC3P44-P77__X	-	600	159	11	160
	73-AC2P44-P77__M	73-AC1P44-P77__M	600	159	4.5	65
	73-AC3P43-P77__X	-	400	106	12	174
	73-AC2P44-P61__M	73-AC1P44-P61__M	360	95	7	102
	73-AC2P44-P49__M	73-AC1P44-P49__M	240	63.4	11	160
	73-AC2P44-P34__M	73-AC1P44-P34__M	120	31.7	15	217
	73-AC2P44-P24__M	73-AC1P44-P24__M	60	16	15	217
	73-AC2P34-P24__L	73-AC1P34-P24__L	30	7.9	15	217
	73-AC2P33-P24__L	73-AC1P33-P24__L	18	4.7	15	217
	73-AC2P14-P24__L	73-AC1P14-P24__L	10.5	2.7	15	217
	73-AC2P13-P24__L	73-AC1P13-P24__L	6	1.6	15	217
	73-AC2P11-P24__L	73-AC1P11-P24__L	3	0.8	15	217
Membrane	73-AC3D44-D163__X	-	1044-1254	276-331	5	73
	73-AC3D43-D163__X	-	624-822	165-217	7	102
	73-AC3D43-D142__X	-	498-624	132-170	10	145
	73-AC3D42-D142__X	-	373-481	99-127	10	145
	73-AC2D43-D115__M	73-AC1D43-D115__M	301-342	79-90	5	72
	73-AC2D42-D115__M	73-AC1D42-D115__M	251-284	66-75	5	72
	73-AC3D33-D142__X	-	249-321	66-85	10	145
	73-AC2D43-D95__M	73-AC1D43-D95__M	173-209	45.6-55	8	116
	73-AC2D42-D95__M	73-AC1D42-D95__M	144-173	38-45.6	8	116
	73-AC2D43-D69__M	73-AC1D43-D69__M	83-111	22-29.4	10	145
	73-AC2D42-D69__M	73-AC1D42-D69__M	68-92	18-24.6	10	145
	73-AC2D41-D69__L	73-AC1D41-D69__L	38-53	9.6-14	15	217
	73-AC2D31-D69__L	73-AC1D31-D69__L	18.2-26	4.8-7	16	232
	73-AC2D21-D69__L	73-AC1D21-D69__L	10.9-15.5	2.9-4	16	232
	73-AC2D11-D69__L	73-AC1D11-D69__L	6.4-9.5	1.7-2.5	16	232

HYDRAULIQUE
Raccordements: L (6×12) / M (3/4″) / X (1″1/4) / Y (1″1/4 NPT)

ÉLECTRIQUE
Tension: 110/230 Vac 50/60Hz
Puissance: 1.2 Kw (1.6 Hp) / 0.43 Kw (0.58 Hp)
Protection: IP55 clase F

MATÉRIAUX
Cylindre: PP / PVDF / AISI 316
Membrane: Base en élastomère renforcé de fibre el revêtment de P.T.F.E
Piston: PEUHMW
Céramique: AISI 316
Estanchéité: FPM
Clapet (coprs): PP / PVDF / AISI 316
Clapet (boule): Verre / Verre borosilicate / Céramique

POIDS ET DIMENSIONS
Poids: AC3: 24 Kg (53 lb) – AC1/2: 13 Kg (29 lb)

Télécharger

Manuels

Fiches Techniques et software

Filename	EN	ES	FR
DAC002 Dostec AC Technical features
DAC004 Dostec AC Viscosity Limits
DAC007 Gate Dostec AC
DAC010 Dostec AC Firmware programmer
DAC010 Dostec AC Programmer Software
